Following the update of the Wattsense product catalog in October 2025, we have decided to migrate licenses created before October 1, 2025, to a corresponding license in the new catalog.
This migration will be to your advantage. Here are the details:
For Bridge licenses: switch to the new default multi-protocol Bridge license with 100 points or Bridge 5000 points, without any additional fees, depending on the number of points currently activated on your box.
For Tower and Tower Control licenses: switch to the new default multi-protocol Tower Control license, which includes schedules for controlling setpoints and automation scenarios with 50, 100, 200, 500, 1000, 2000, and 5000 points, without any additional fees, depending on the number of points currently activated on your box.
If it has been activated, the license activation date will remain the same, as will its expiration date.
Examples:
You have a Tower Medium with 200 points included and 2 extensions of 50 points. The license is valid for 3 years and was activated on October 4, 2024 (expiration date October 4, 2027) => you will switch to a Tower Control 500 points license with the same activation date of October 4, 2024 and an expiration date of October 4, 2027.
You have an IoT Bridge with 100 data points with only the LoRaWAN protocol authorized for incoming data. The Bridge was activated on June 20, 2023 (cellular communications included for 10 years) => you will switch to a 100 points multi-protocol Bridge license. The activation date remains June 20, 2023, and cellular communications support will end on June 20, 2033.

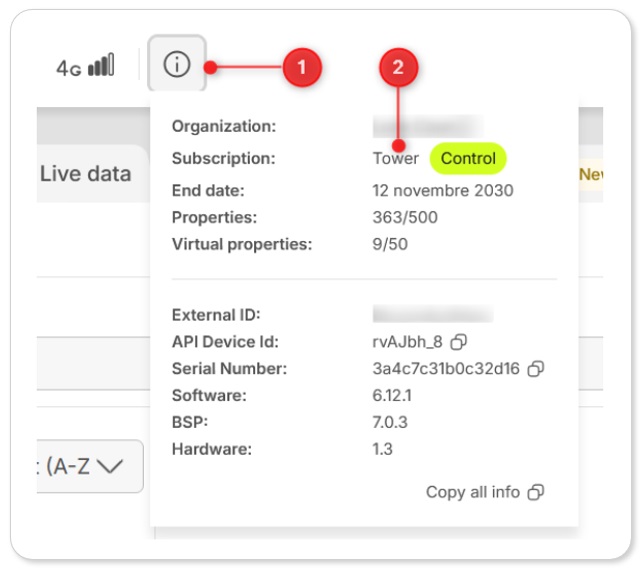

The migration will happen on June 30th and will not require any action on your end. You will be notified by e-mail. Once it is complete, you will see the names of the new licenses appear in your box information.
Changes to how virtual properties are counted

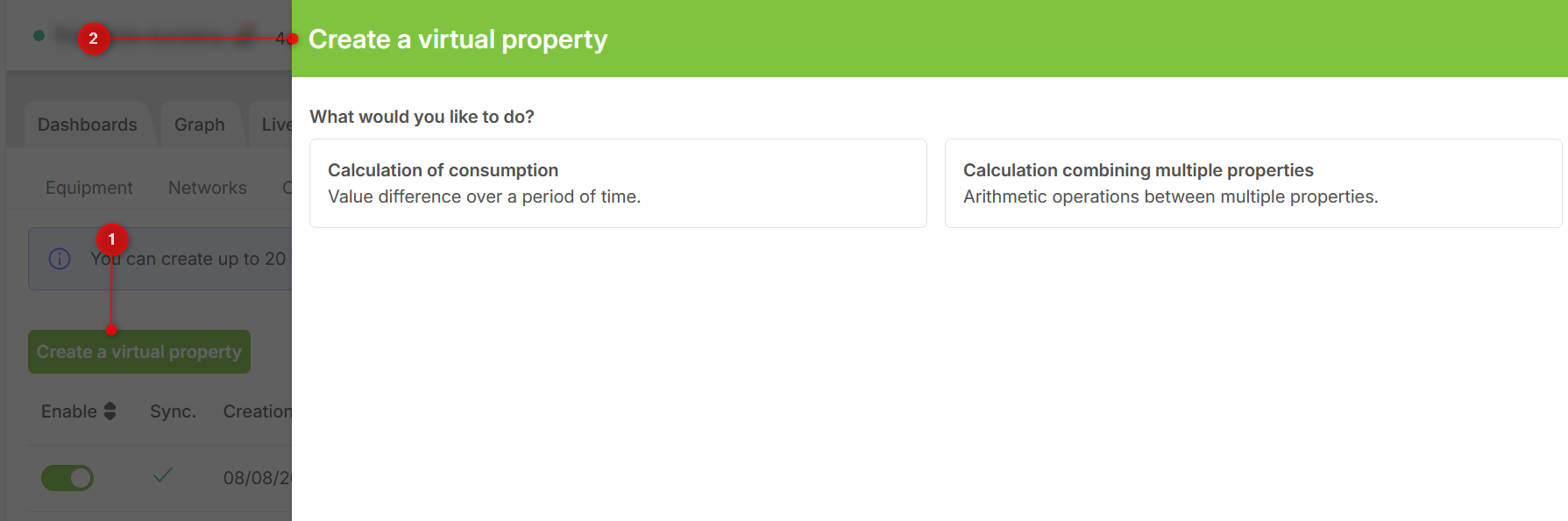

Virtual properties are points available exclusively in the cloud that you can create in the console based on the values of incoming properties. There are of two types: consumption calculation and arithmetic calculation.
Until now, virtual properties could be created up to a limit of 10% of the points included in your subscription. Example: for a Tower license with 100 points, a user could create up to 10 virtual properties in addition to retrieving the values of 100 properties.
Soon, and on the same date as for licenses—June 30, 2026—the limit on the number of points in your subscription will apply to incoming properties and virtual properties, eliminating the 10% credit. Example: For a Tower license with 100 points, a user will be able to create as many virtual properties as they wish, as long as the total number of incoming points and virtual properties is less than or equal to 100.

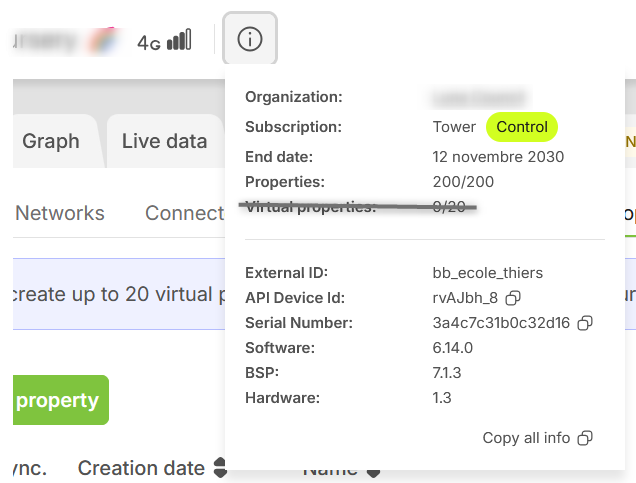

Following this update, a single counter will then be visible in your box’s information:
This article explains what happens when your Tower license expires. Bridges are also impacted by this process even if they are not directly linked to a license.
Towers
One month before a license expires, emails are sent to the Tower sub-organization administrator and billing contact. They indicate that the subscription is about to expire and suggests taking action to renew the license. Other reminder emails are sent one week before the expiration date and on the expiration date.
At the same time, this information is also displayed on the console interface :
1 month before the end of the license
License has expired

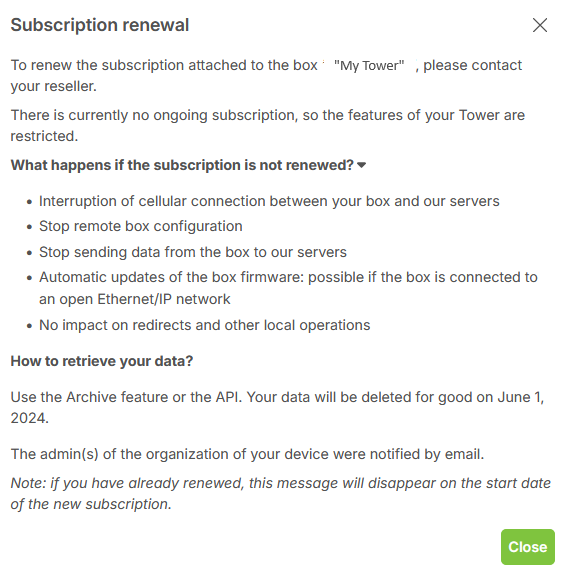

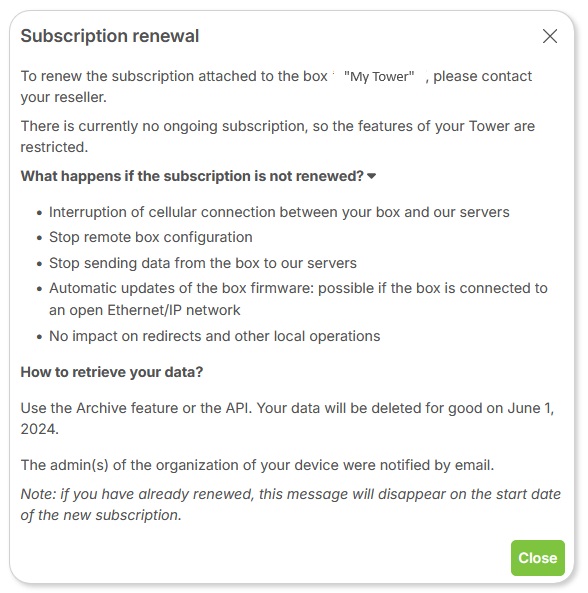

If you click on the Renew shortcut, you will have access to a list of technical impacts if the licence is not renewed detailed here:
To renew the subscription attached to your Tower, please contact your reseller.
There is currently no ongoing subscription, so the features of your Tower are restricted.
What happens if the subscription is not renewed?
Interruption of cellular connection between your box and our servers
Stop remote box configuration
Stop sending data from the box to our servers
Automatic updates of the box firmware: possible if the box is connected to an open Ethernet/IP network
No impact on redirects and other local operations. The device will continue to behave the same locally. Values will be redirected between equipment and gateway.
How to retrieve your data?
Use the Archive feature or the API. Your data will be deleted for good after 6 months after the end of your subscription.
The admin(s) of the organization of your device were notified by email.
Note: if you have already renewed, this message will disappear on the start date of the new subscription.
The following diagram shows the features that are no longer available as well as the services that are still active after the license expires.
Legend
Services are interrupted
Services are available for 6 months (archive API feature)
Six months after the last license end date is reached, the box data is deleted from Wattsense servers. All the data is deleted but not the configuration. Users are notified via email and in the console.
A final email is sent when the tower goes into restricted mode. At this time, the status of the box changes to gray in the console.
Bridges
Bridges do not have a license strictly speaking, but there is a 10-year limitation linked to the GSM subscription. If you do not use the GSM connection (your bridge is connected via LAN / Ethernet network), there is no impact.
If you use the default GSM connection :

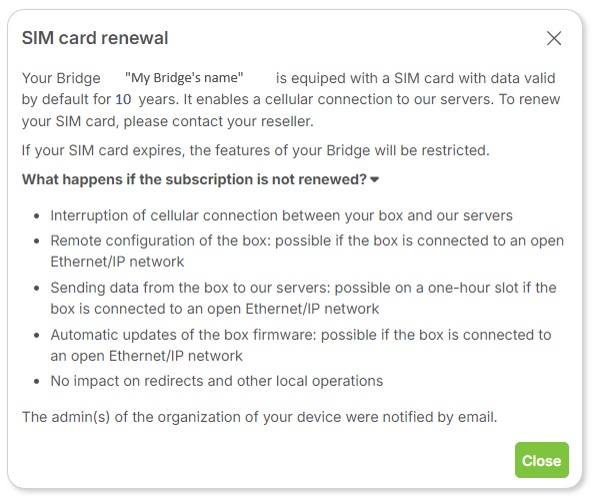

If the subscription is not renewed when the 10 years period is reached, the features of the Bridge will be restricted as described in the console :
SIM card renewal
Your Bridge is equiped with a SIM card with data valid by default for 10 years. It enables a cellular connection to our servers. To renew your SIM card, please contact your reseller.
If your SIM card expires, the features of your bridge will be restricted.
What happens if the subscription is not renewed?
Interruption of cellular connection between your box and our servers
Remote configuration of the box: possible if the box is connected to an open Ethernet/IP network
Sending data from the box to our servers: possible on a one-hour slot if the box is connected to an open Ethernet/IP network
Automatic updates of the box firmware: possible if the box is connected to an open Ethernet/IP network
No impact on redirects and other local operations
The admin(s) of the organization of your device were notified by email.
On the following diagram, you can see the impact if the GSM connection is interrupted (in red)
Reactivation
When a hardware becomes active again :
● its sim card is reactivated ● the restriction are removed
If you need any additional information, please contact us here.
This article describes the detailed functional diagram of the Tower and Bridge boxes.

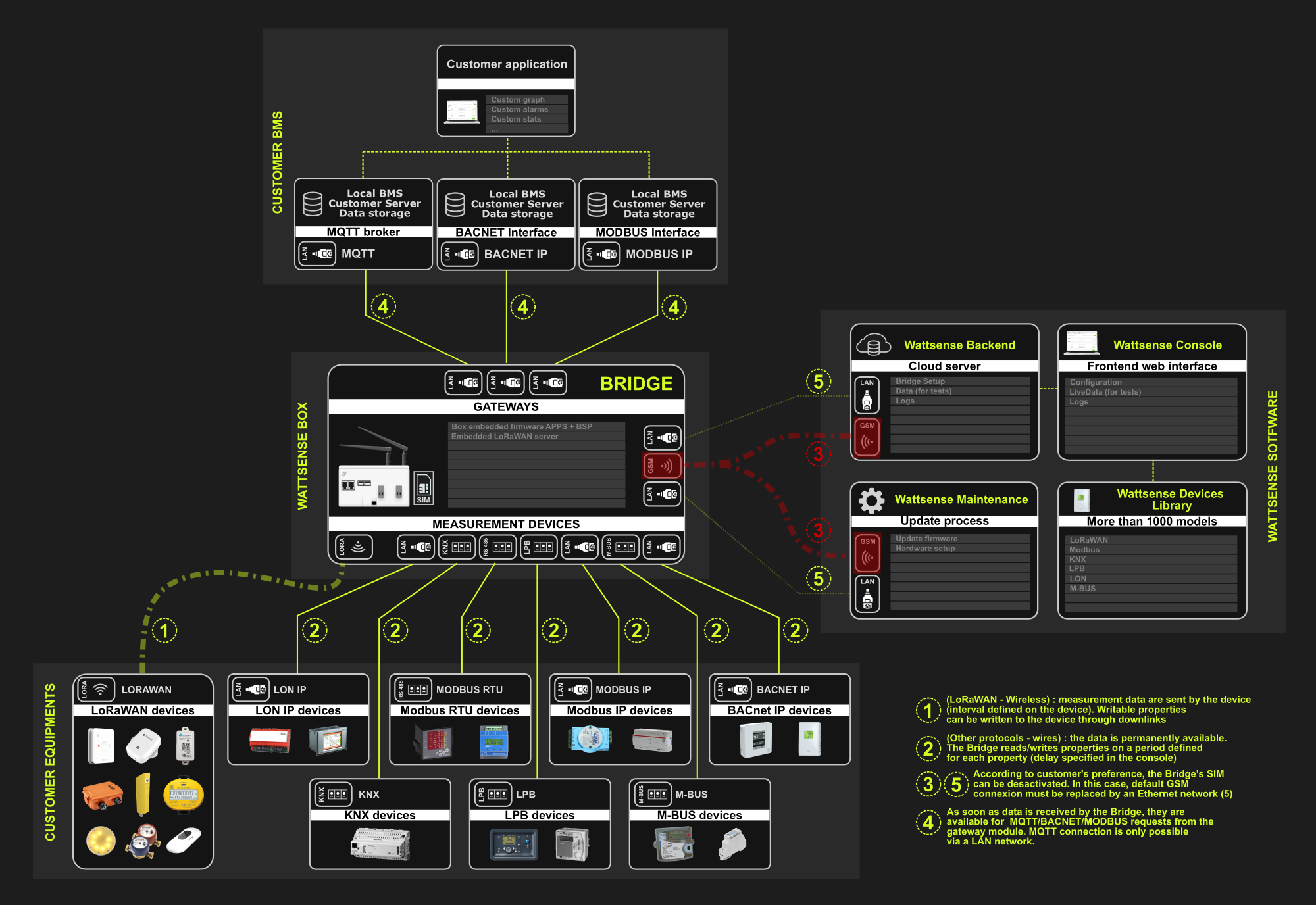

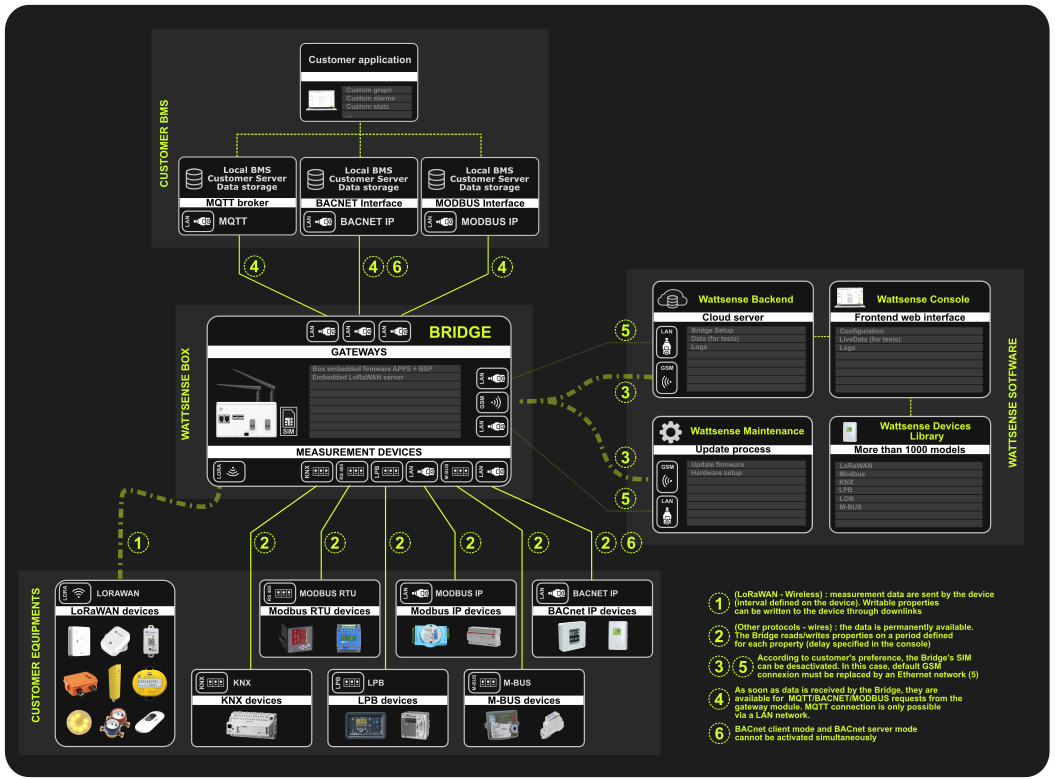

1) Bridge
Main features
Remote configuration: Manage your gateway settings from anywhere.
Real-time data: Access immediate insights from your connected devices.
Local Redirection: Easily integrate with BACnet, Modbus, or MQTT for on-site control.
Ideal for: Projects requiring a reliable, local bridge for sensor data (e.g., LoRaWAN) to be integrated into an existing BMS, enabling local automation based on real-time conditions. Available in 100 points or unlimited versions to scale with your needs.
Schema

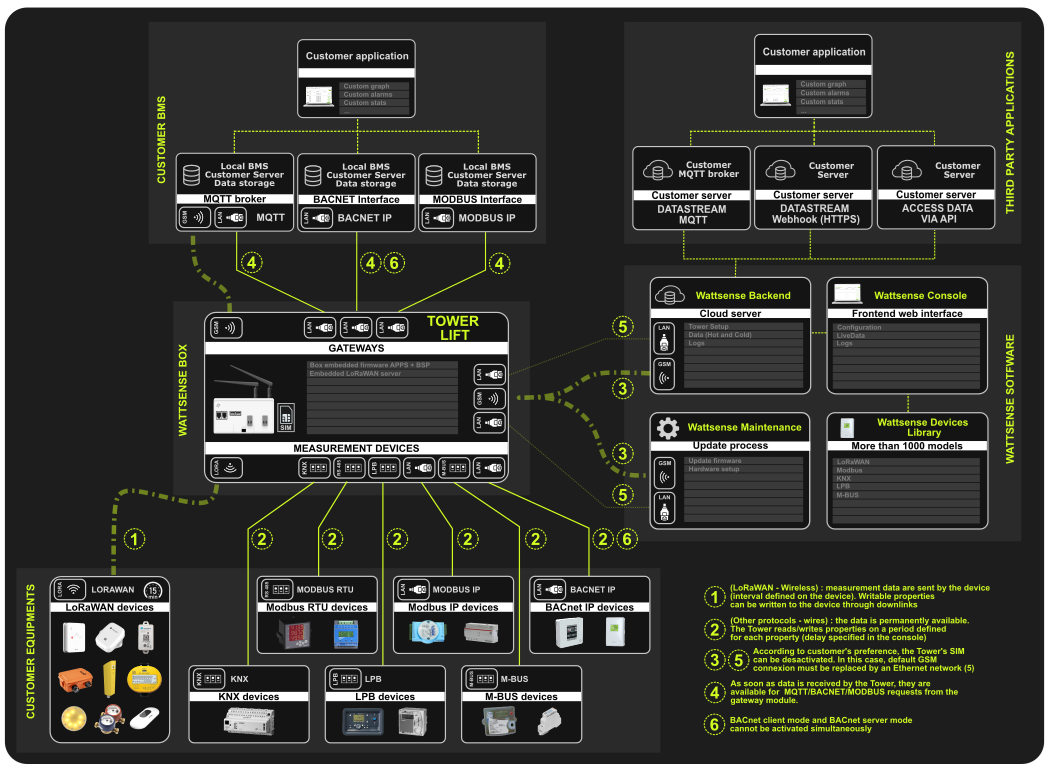

2) Tower Lift
Main features
Data historization: Store and access historical data for in-depth analysis.
API & Webhook Integration: Seamlessly push data to your preferred cloud platforms and applications.
Use case: Residential buildings or portfolios where the primary need is to collect vast amounts of data (e.g., electricity, water meters, environmental sensors) and integrate it into a central analytics platform or Energy Management System via API for billing, predictive maintenance, energy performance or tenant experience apps.
Schema

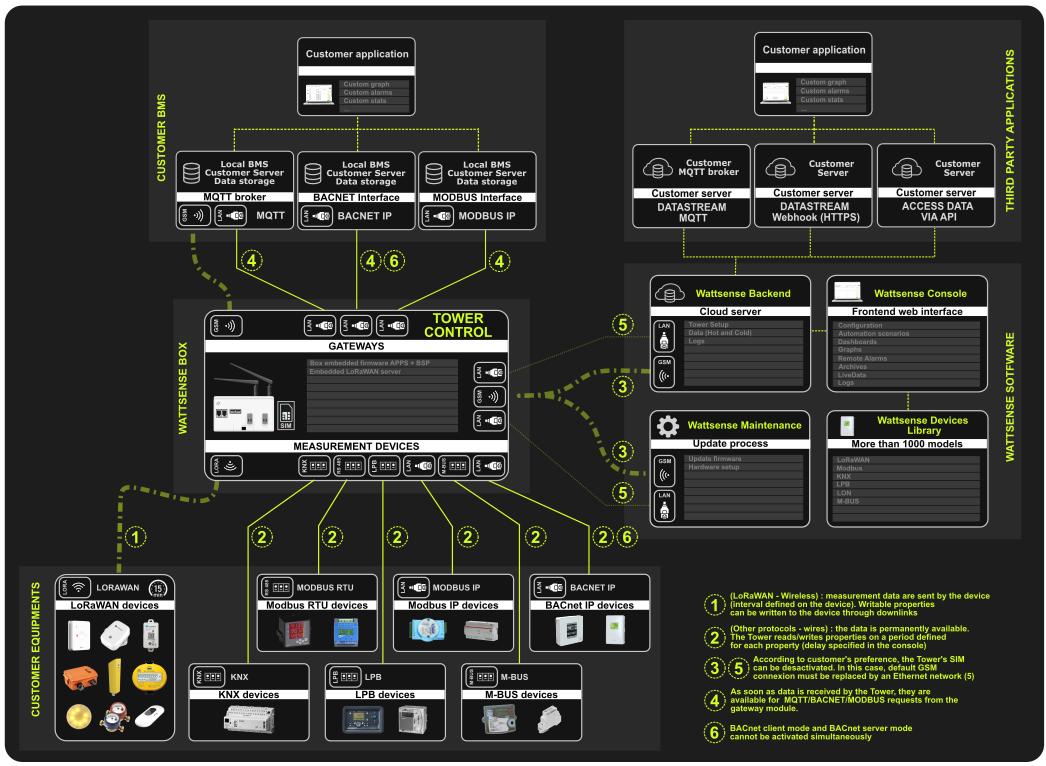

3) Tower Control
Main features
Automation scenarios: Create custom rules to optimize energy consumption and comfort.
Scheduling: Implement time-based controls for HVAC and more.
Remote alarms: Receive instant notifications for critical events.
Dashboards & Graphs: Visualize building performance with customizable insights.
Use case: Small to medium-sized commercial buildings (e.g., post offices) where you need to connect various equipment (boilers, controllers, meters, sensors) and implement intelligent automation to react to conditions, optimize schedules, and reduce operational costs.
Schema
If you would like to have a more synthetic view of the differences between the two models, you can refer to this article : differences between Tower/Bridge.
For more information, feel free to contact us here.
This article is about the requirements to connect a Wattsense Tower/Bridge to a BMS.
Below the information needed to connect the Wattsense Tower/Bridge with an existing BMS :
R = Required - O = Optional - N/A = Not Applicable - (*) = See remarks
Checklist
Remarks
Document

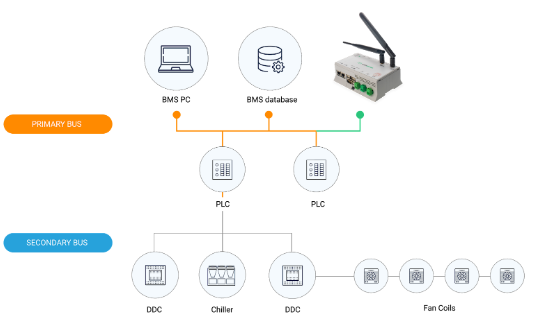

BMS network overview
R
It helps to identify the best location of the Box
Connectivity
GSM/3G/4G Signal quality test
R
Not Filled
As indication, use your mobile phone as reference: • Write down the network carrier used for the test • Check the number of network bar of your mobile phone • Check if you can access website smoothly
Only applicable for IP network
Assign IP address and netmask for the Box
R*
(*) Check with the IT manager of the building to gather these informations
Internet access via ethernet
O*
(*) Check with the IT manager of the building to obtain the gateway IP address
Protocol used on the BMS primary network
BACnet
IP (Ethernet/RJ45)
BACnet port (UDP port)
R
• IP : Default UDP port is 47808 (0xBAC0)
BOX should be on the same network as BBMD
R
Communication configuration (Baud rate)
N/A
(*) MS/TP: Check with your Wattsense customer support contact
Modbus
IP (Ethernet/RJ45)
RTU (RS485)
Slave address of all equipment
*
R
(*) This is required when Modbus TCP/IP <==> RTU gateway is used (e.g Schneider EGX 150)
IP address and UDP ports of all equipment
R
N/A
Default UDP port is 502
Network communication configuration
N/A
R
Obtain Baud rate/Parity/Data bit/Stop bit of each Modbus network (Contact your technical team responsible for the BMS)
Modbus register list
O
O
• Required information for the collection of data. Please send via the support contact email: • A list in Xls, CSV, or text file format of the specific data points (properties) you wish to recuperate. - Name of the variables - Register address - Data format - Access type - Modbus function used
For more information, feel free to contact us here.
Wattsense is compatible with the following protocols :
LoRaWAN
Bacnet
Modbus
M-Bus
LPB
KNX
Diematic
Wattsense proposes two versions to manage the data, based on the same hardware :
TOWER : data can either be sent to a server by API Restful or MQTT (connection with LAN or 4G, SIM card provided), or be converted locally to BACnet IP or Modbus IP.
BRIDGE : data can either be sent to a server by MQTT (connection only with LAN) or be converted to BACnet IP or Modbus IP.
More information about the differences of our products here.
Please find below the certifications of each version of the Wattsense device.

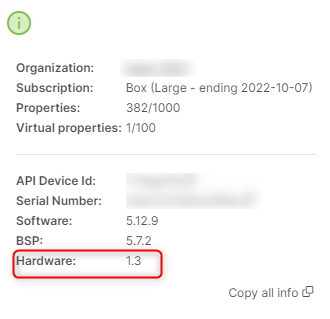

To find your hardware version, please check the label below:
Certifications of the hardware v1.3
EU declaration of conformity (CE)
UK declaration of conformity (UKCA)
FCC mark (FCC ID 2A2KQ-WSGW1)
ISDE (Canada)
RCM certification (Australia)
IMDA certification (Singapore)
Certifications of the hardware v1.4
EU declaration of conformity (CE)
UK declaration of conformity (UKCA)
FCC mark (FCC ID 2A2KQ-WSGW1)
ISDE (Canada)
RCM certification (Australia)
IMDA certification (Singapore)
Cybersecurity (v1.4)
In accordance with the European Directive RED 2014/53/EU1, which imposes constraints on the protection of network connections as of August 1, 2025, our Box V1.4 complies with the requirements of standard EN18031-1:2024.
Towers and Bridges share the same hardware version
If you need any additional information, please contact us here.
The wattsense API provides a two way communication channel with devices managed by the platform.
You willl find all information you need regarding the Wattsense API here.
All the paths in this documentation are relative to the base pathhttps://api.wattsense.com/. We only support HTTPS, all HTTP requests are redirected with a 301.
A global rate limit is currently defined on the Wattsense API. The rate limit is IP based (in the future it will be device based). The current limits are:
2500 requests every 5 min for all requests
100 requests every 5 min for requests targeting the configuration APIs
For more information, feel free to contact us here.
