Here is a view of the parameters you will need to fill in order to create your LPB equipment :

Wattsense box network requirements :

First of all, you will need information to configure your Tower/Bridge on the LPB network.

Segment number
an available Device number

The default parameters that we recommend for the segment number is 2 and for the device number 16

Configure Network LPB on the Box

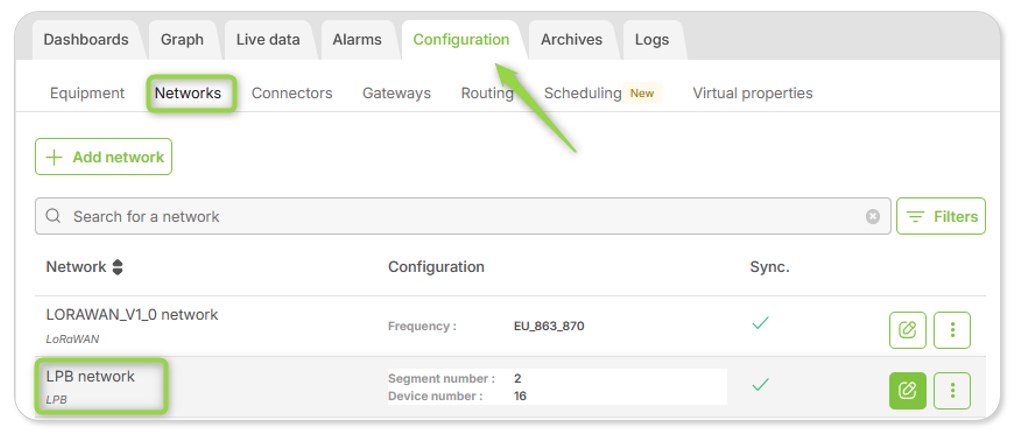

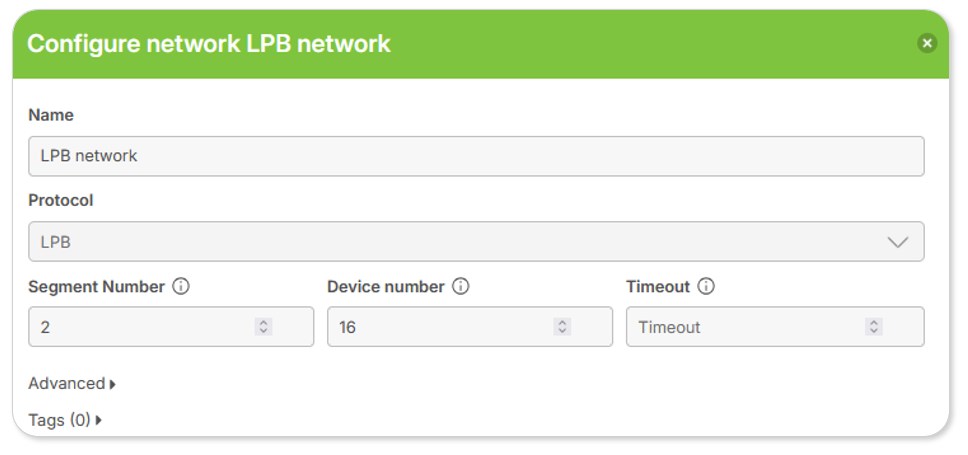

Go to the Configuration Tab of the Console / Networks. Add a new network or modify the LPB network as shown on the screen below :


Article.RequirementsToConnectALPBEquipment.BoxNetWorkConfigurationDetail.EN.Shadow.jpg

Equipment requirements :

In order to read data from equipment you'll have to fill these blanks :

Segment number
Device number

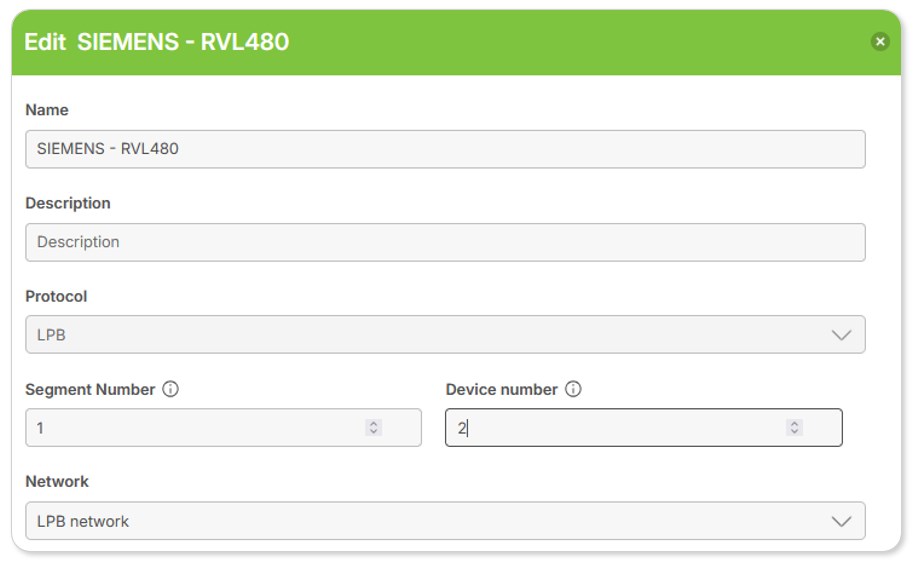

Using the previous example, (segment number = 2 and device number = 16 for the box, the equipment can be configured with (segment number = 1 and device number = 2).

Please note, on the LPB network, the Segment numbers can be identical between Wattsense box / Equipments but the Device numbers must be different !


Property requirements :

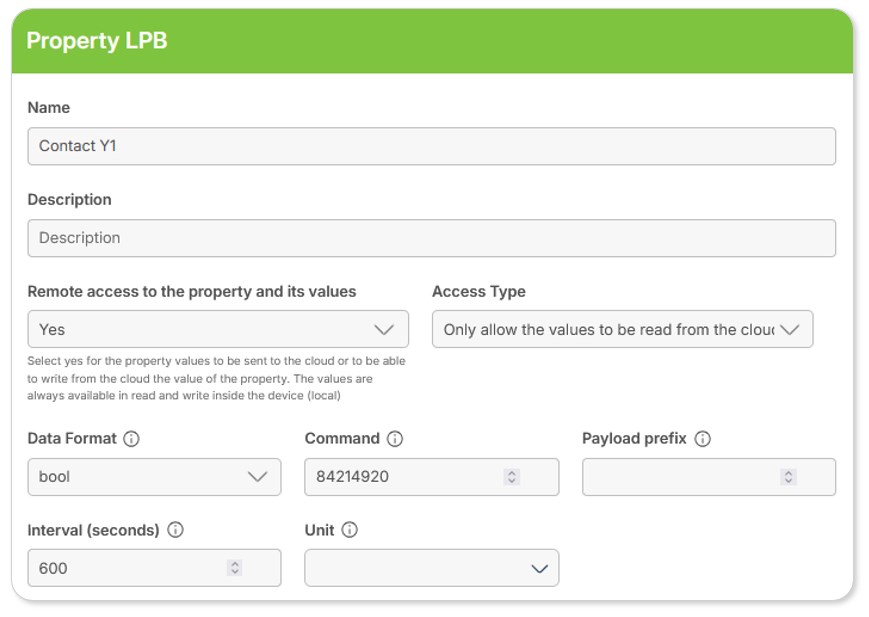

Here are the parameters that you'll need to fill if your equipment is not available in our database.


Here are the data types available :


If you have any problem, please do not hesitate to contact us: Wattsense Support
