Here is an article about how to configure your Datastream MQTT.

A Datastream MQTT is an MQTT communication between our Wattsense Backend and your Cloud based MQTT broker.

Available only with a Tower subscription, when our backend will receive either a value, an event or an alarm from the Tower, it will be automatically send to your MQTT Broker.

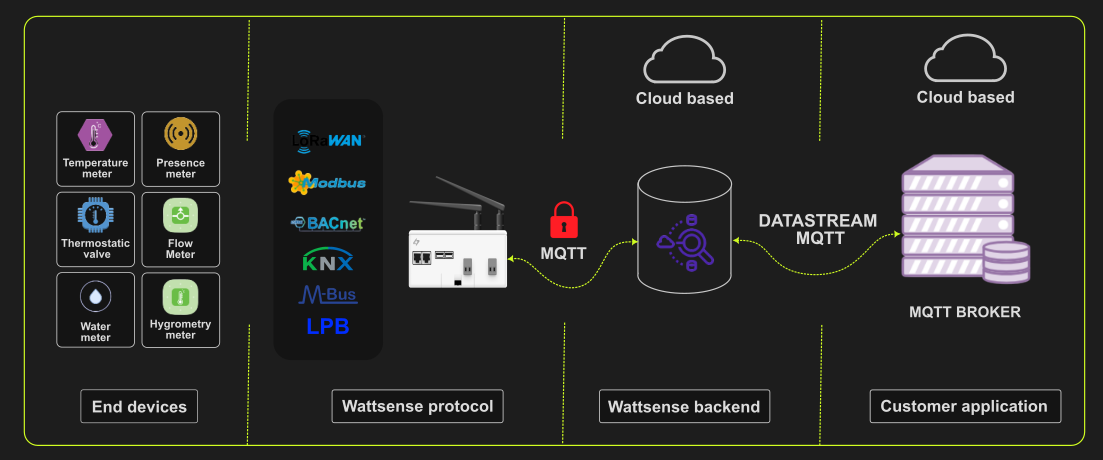

Datastream MQTT architecture


Requirements to configure a MQTT Datastream

To properly configure MQTT communication, it is necessary to obtain the crucial information from your broker parameters, which Wattsense does not provide. This information will enable our Backend to connect to your MQTT broker, which could be AWS, Azure, IBM, or a custom one.

Broker URL	The broker URL following by the ":" and MQTT communication port.
Topic	Topic name for each flow : Event / Alarms / Values
Client ID	Has to be unique, will help you to identify the connection requester.
Quality of Service	QoS level 0 : “At most once” - The message is send without acknowledgement QoS level 1 : “At least once” - The message is send with acknowledgement QoS level 2 : “Exactly once” - The message is send with acknowledge (avoid message duplication mechanism)

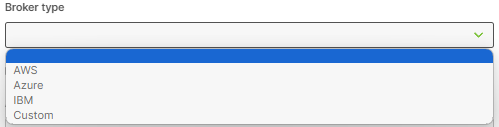

Broker Type	We will let you select between this broker type

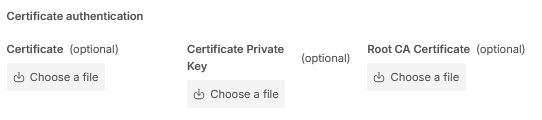

Certificates	We will let you the possibility to add certificates if your MQTT broker requires it.

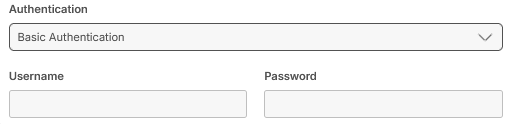

Authentication	Basic Authentication (with username/password) No Authentication

Step by step configuration

Connector configuration

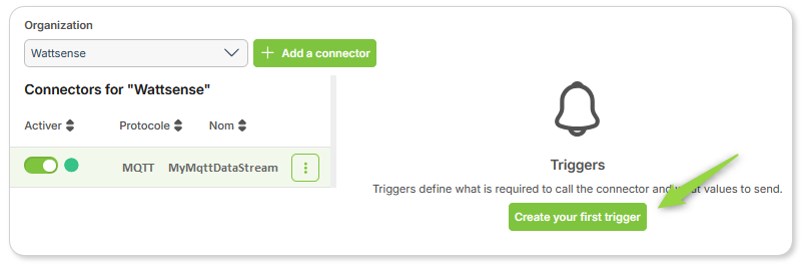

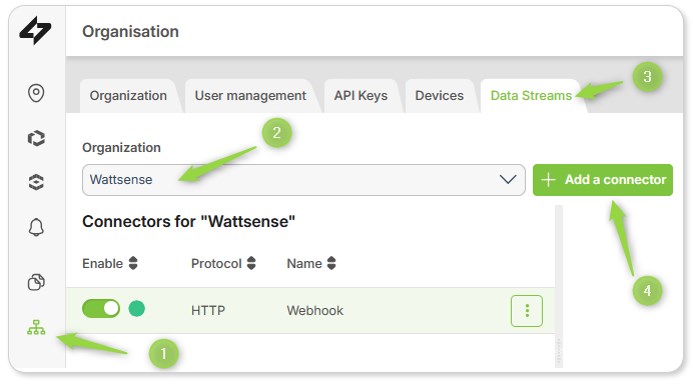

First of all, click on the "Organization" tab, select the Organization where you want to create your MQTT datastream and click on "Add a connector".

You can create several MQTT connector per datastream

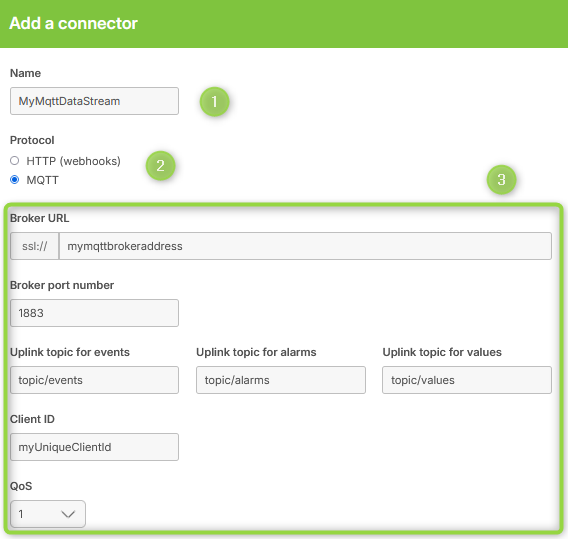

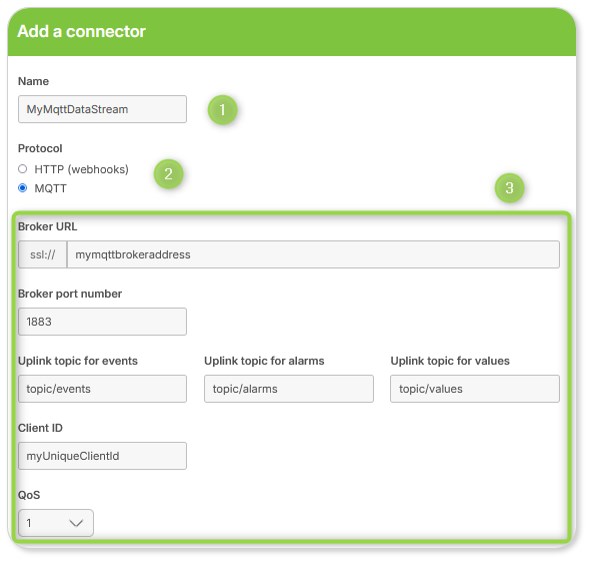

Name your MQTT myMqttDataStream and fill the blanks according to your broker requirements:


Triggers configuration

Once the communication setup is done, you will have to create the Triggers :


Triggers define what is required to call the connector and what values to send.

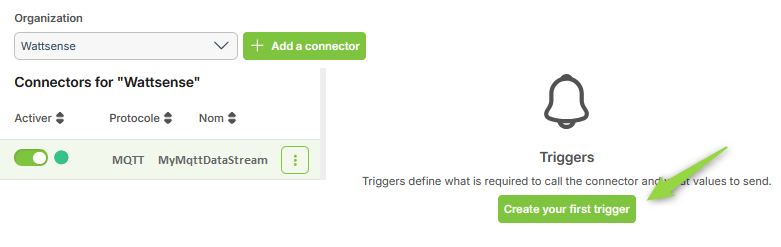

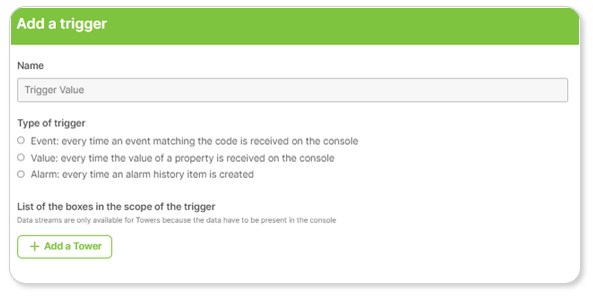

When you click on the " Create new trigger" button, here is the interface you'll have to fill :

- Select what type of trigger you want to receive in your MQTT broker.

- Add the Tower(s) in the list in the scope of the trigger. (Note that you'll only see Towers in the current Organization, not from an other one.)

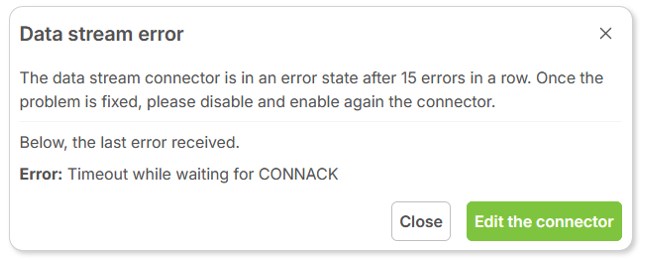

Activate the Datastream

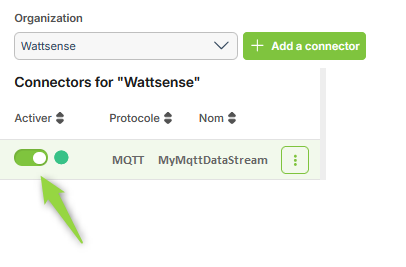

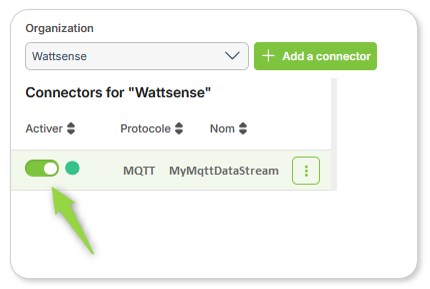

At the end of the configuration, don't forget to activate the datastream by enabling the toggle button


Data format

The data is sent with the following structure :

deviceId: String,
property: String,
timestamp: Long,
payload: Any,
receivedAt: Long?
scaledPayload: Number?
name: String?
unit: String?
externalId: String?
propertyId: String?
equipmentId: String?
gatewayInterfaceId: String?
slug: String?
isOutOfService: Boolean?
tags: Map<String, String>

The ? at the end of the line means that the field can be null.

Here's an example :


If you need any additional information, please contact us here.
