This article is about the requirements to connect a KNX equipement to the Wattsense Box.
In order to connect a Box to a KNX equipment you'll need to :
- Add the Box correctly in the KNX network
- Collect the required equipment information in order to read data.

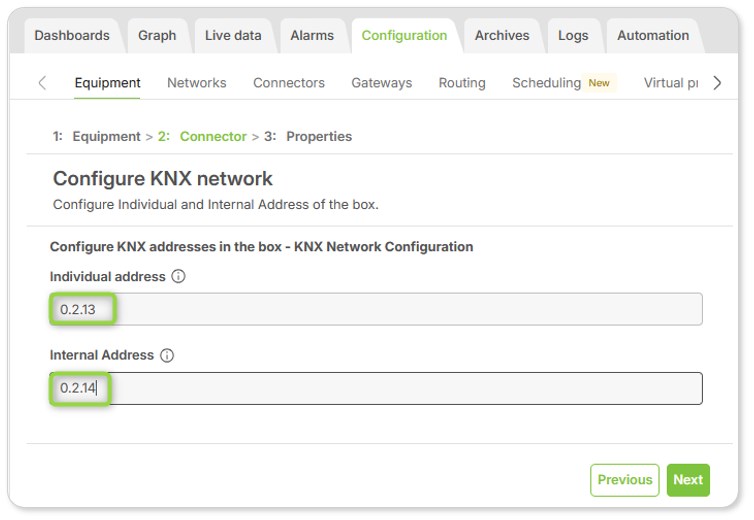

Box network configuration :
To correctly add the Box in the KNX LTE network you'll have to assign a free and unique individual address and internal address (required by wattsense software design) :
Example: 0.2.13 and 0.2.14
Architecture example:
Equipment Configuration

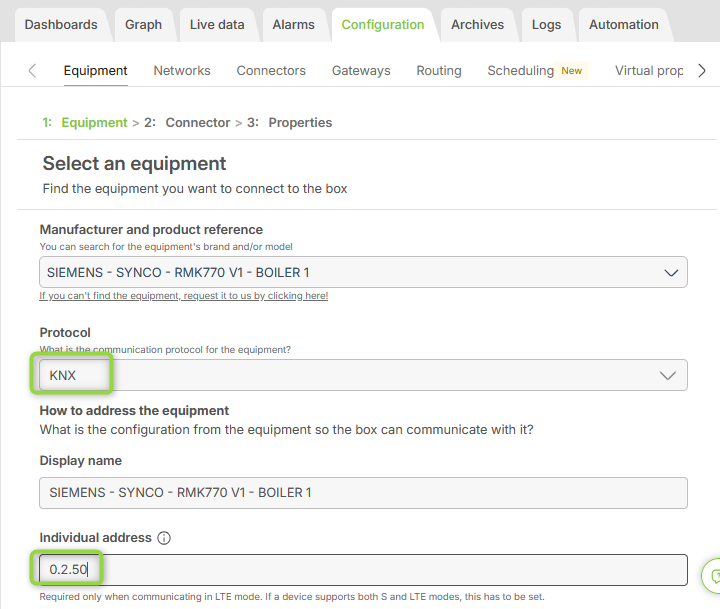

1. Select an equipment in our database. If it's not available, please contact us: support.wattsense.com
2.To complete the example above (Box Address = 0.2.13 / 0.2.14). the device address is 0.2.50.

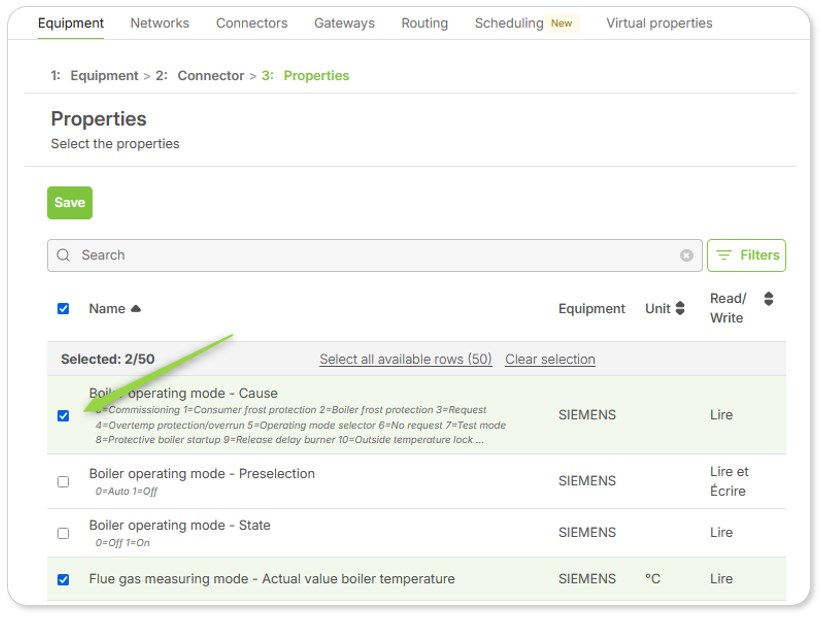

Properties
You'll be able to use our configuration wizard to generate all the properties we are currently supporting.
The properties will be available after adding an equipment.
Select the properties you want to monitor
If you have any problem, please do not hesitate to contact us: Wattsense Support
