This article will guide you through the installation of your Modbus IP device.
First of all, please check this previous article about the Modbus IP network. It will help you to prepare your further installation.
Installation Information
In order to make the system work you'll have in mind some important information :
Be sure that your Tower/Bridge is able to access the targeted device (both devices are on the same network)
Example:
Box IP address : 192.168.1.100
Modbus IP device : 192.168.1.101
You must know the ModbusIP register table of the device if you are using one that is not in our compatibility checker.
Please check this document that will detail the Hardware installation for many networks.
Step 1

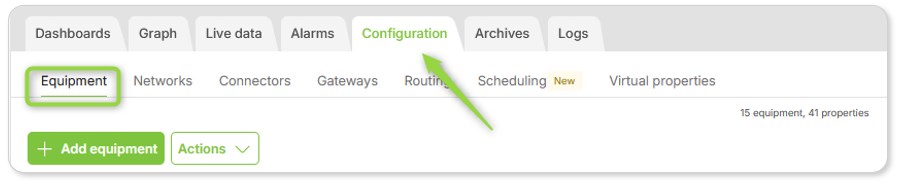

Add your equipment by using our Configuration Wizard:
Equipment information If your device is not in the Configuration Wizard list it does not mean that the box can't connect to it but only that you will have to do the setup manually for the first time.
Feel free to send us your missing equipment and we will add it for you to our compatibility list.
|
Step 2

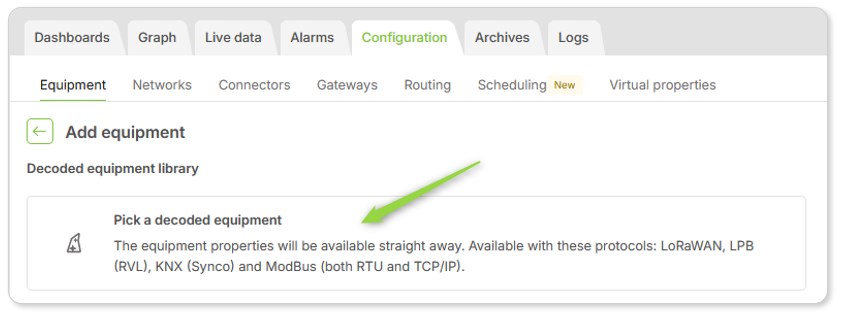

Select the equipment and click on Next.
Step 3
Once you've selected your equipment (in the example France Air - WALLPLAY), you'll have to setup :
- IP Address (two devices can't be assigned to the same IP address)
- Port
- Slave ID (has to be unique on a network)
Step 4

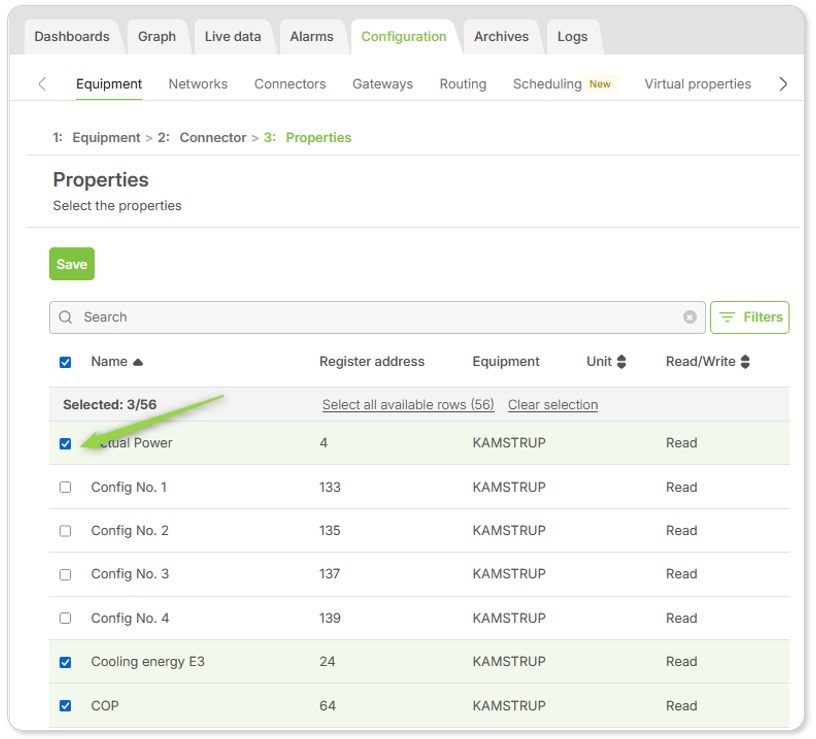

Select the properties you want to monitor and click on "Save"
Once saved, your Modbus Equipment is connected to your Tower/Bridge.
If you need any additional information, please contact us here.
